CARD EDGE CONNECTOR PITCH 3.96MM – 謙鑫

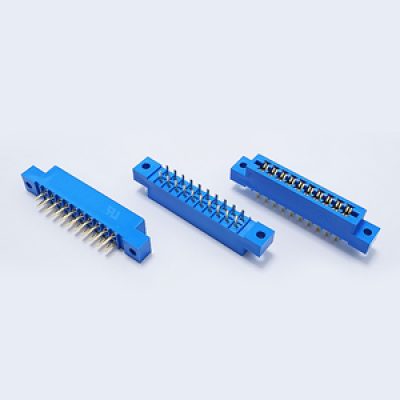

CARD EDGE CONNECTOR PITCH 3.96MM

CIAN SHIN has several selection for EDGE CARD connectors.

  • Edge card PITCH 96MM

DESCRIPTION:

  • 3.96 mm Dip Type with Mid Mounting Ears
  • 3.96 mm Right Angle Type with Mid Mounting Ears

FEATURE:

  • Insulator Material:
    LCP UL94V-0
  • Contact Material:
    Phosphor Bronze
  • Plating:
    Selective Gold Plating On Contact Area
    100μ” Tin Plating On Tail Section
    50μ” Nickel Underplating

SPECIFICATION:

  • Current Rating: 3Amperes
  • Contact Resistance: 20 Milliohme Max.
  • Insulation Resistance: 5000 Megaohms Min.
  • Voltage Rating: 800VAC 1 Minute
  • Operation Temperature: -55℃ to + 105℃
  • Insulation Farce: 412 grams max per pair
  • Withdrawal Force: 32 grams min per pair
  • SKU：PITCH 3.96
INFO
PDF
